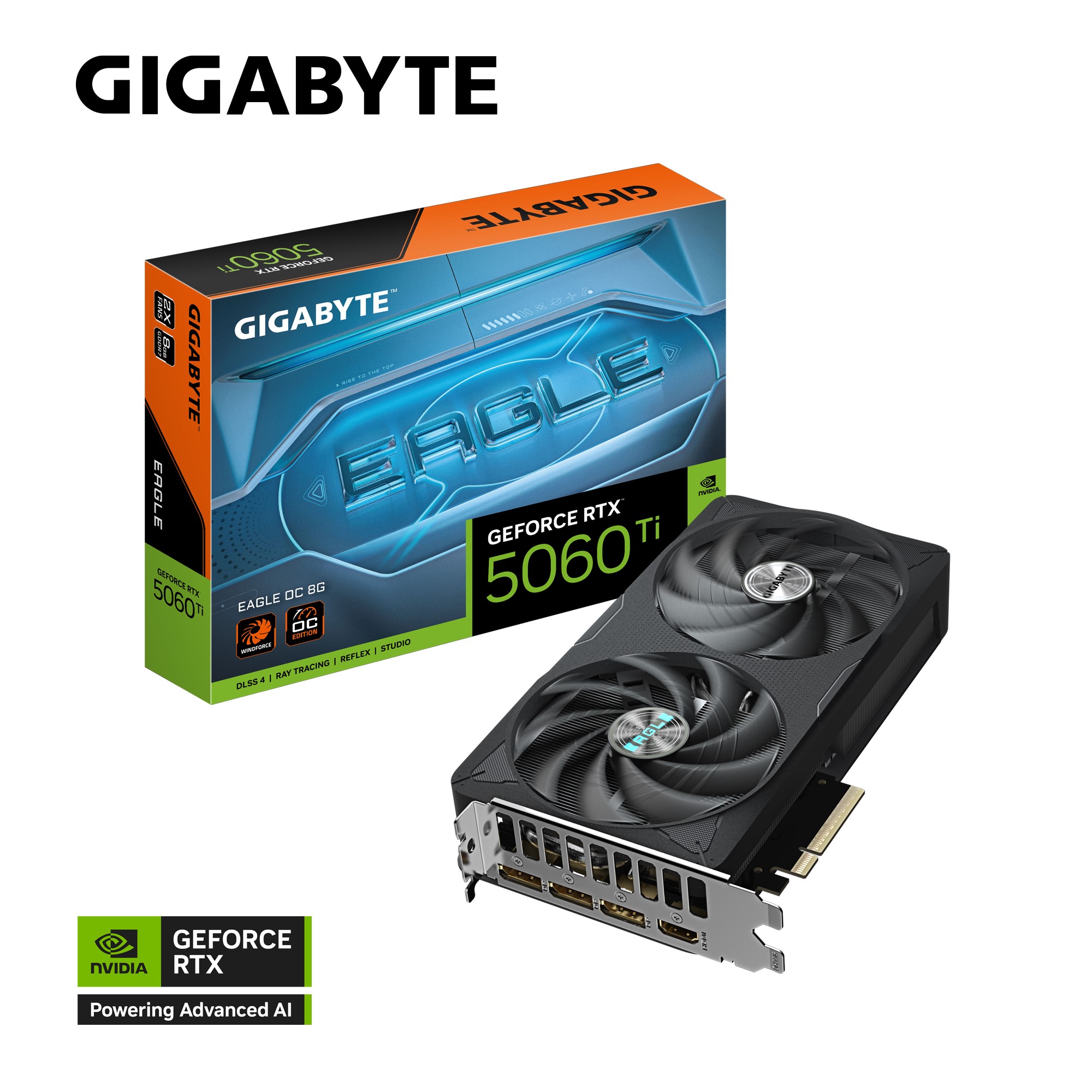

Gigabyte GeForce RTX™ 5060 Ti EAGLE OC 8G, 2617 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5060 Ti

Core Clock
2617 MHz (Reference card :2572 MHz)

CUDA® Cores
TBD

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=215 W=122 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

SIGNATURE IDENTITY
The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EALGE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.

REINFORCED STRUCTURE
The reinforced backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
