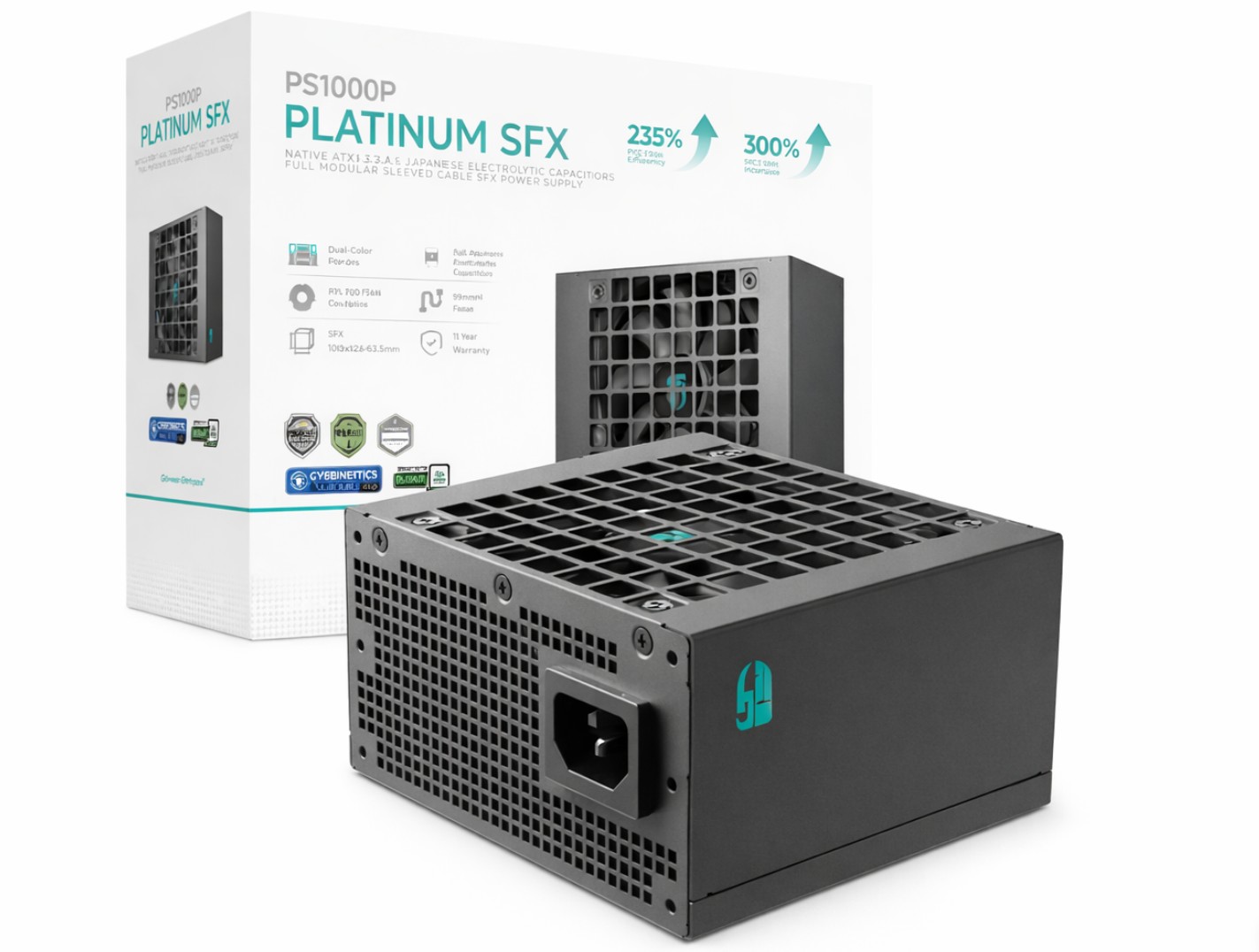

Model PS1000P
Model No PSA00P-FE
Total Output 1000W
Type SFX12V V4.1 & ATX12V V3.1
Product Dimensions 125×100×63.5mm (W x L x H)
Efficiency certification Cybenetics Platinum/PPLP 115V Platinum
Fan Size 92×92×15mm (W x L x H)
Fan Bearing FDB
Topology Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors Full Japanese Electroyltic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms 80% load
Efficiency ≥92% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature 0~40°C
Regulatory TUV-RH/CCC/CE/RCM/EAC
Erp Regulation ErP 2014
Environment Protection 中国RoHS/WEEE/Triman/EAC 037 RoHS
MTBF 100,000 Hours
Warranty 7 Years
Optional Accessories :
