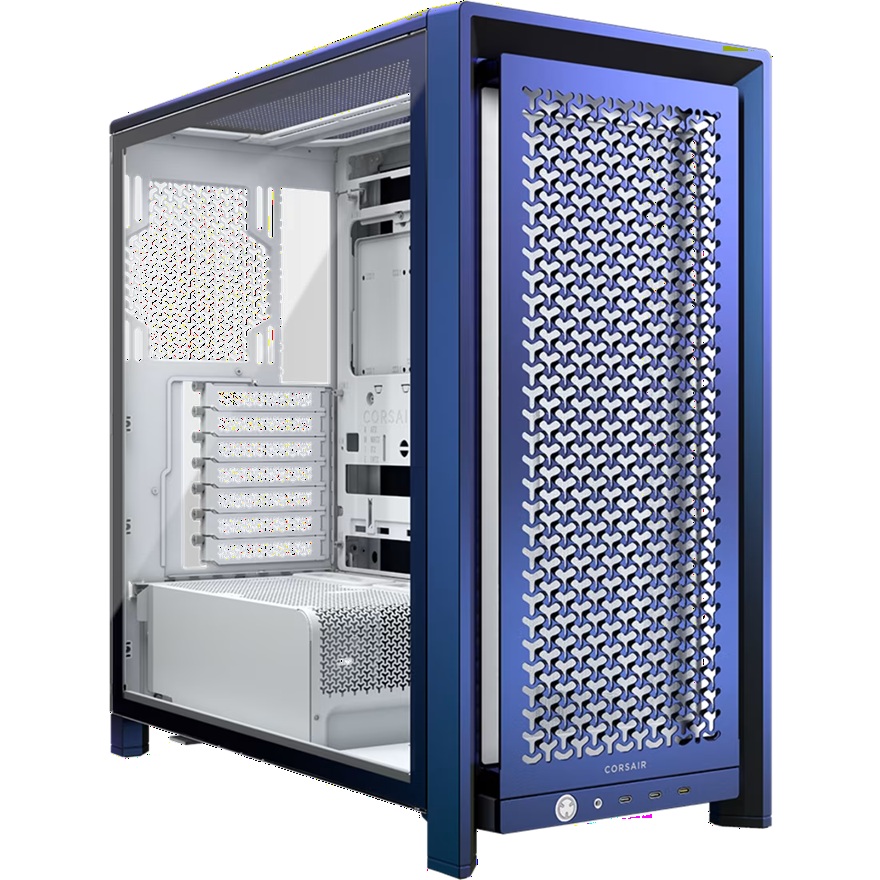

Corsair FRAME 4000D Vault Series Modular Mid-Tower PC Case – Nova, ATX/E-ATX, TG panel, modular, 430mm GPU, 170mm CPU clr, 360mm rad, USB-C, 2yr wty
•Chromatic paint that shifts color with viewing angle and lighting
•Aluminum badge with limited edition etching, only 1337 of each color made
•Full-Tempered Glass Side Panel and Compact PSU Shroud
•Modern Front I/O panel with 3x USB Type-C ports
•InfiniRail™ Fan Mounting System for easier building
•Dual 360mm radiator support
•GPU Anti-sag Stabilization Arm
•Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH
Color: NOVA
Tech Specs
Case Supported
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height
486mm
Case Length
490mm
Case Width
239mm
Material
Steel, Tempered Glass, Plastic
Color
WHITE
Case Size
Mid-Tower
Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm
Case Window
Tempered Glass
Compatible Liquid Coolers
H60, H100, H115, H150, NAUTILUS, TITAN
Case Warranty
2 Year
Internal 3.5′ Drive Bays
1
Internal 2.5′ Drive Bays
2
Maximum CPU Cooler Height
170mm
Maximum PSU Length
220mm
Case Front IO
(1x) USB 3.2 Gen 2×2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out
Maximum GPU Length
430mm
Weight
12.54kg
Case Expansion Slots
7 Horizontal or 3 Vertical
Case Power Supply
ATX
Radiator Support – Top
360mm, 280mm, 240mm
Radiator Support – Front
360mm, 280mm, 240mm
Radiator Support – Bottom
None
Radiator Support – Side
360mm, 280mm, 240mm
Radiator Support – Rear
140mm, 120mm
Fan Support – Top
3x 120mm, 2x 140mm
Fan Support – Front
3x 120mm, 2x 140mm, 2x 200mm
Fan Support – Bottom
3x 120mm
Fan Support – Side
3x 120mm; 2x 140mm
Fan Support – Rear
1x 120mm, 1x 140mm
Front IO Motherboard Connections
1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio
Reverse Connector Motherboard Support
Yes
Included Fans
No Fans Included
Dust Filtration
Yes
Cable Routing Space
37mm
RapidRoute Included
No
Left Side Panel
Tempered Glass
Right Side Panel
Steel
Vertical Mount Support
Supported (Riser Card Sold Separately)
