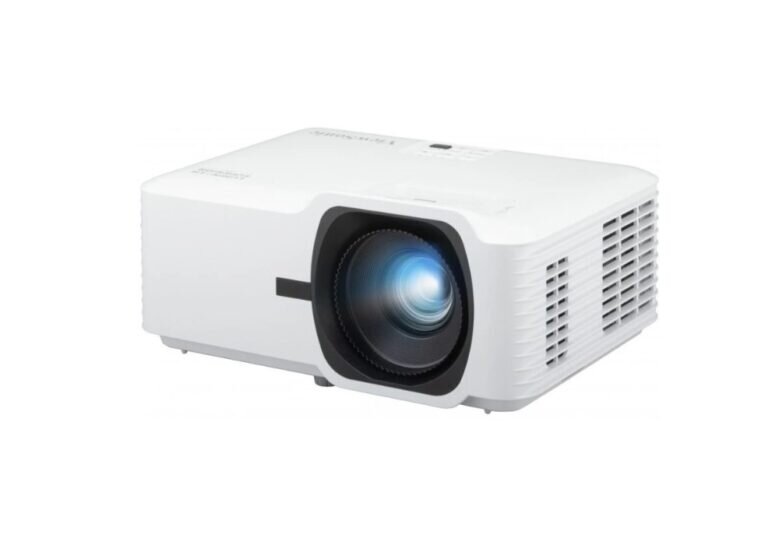

LS740HD
3rd generation laser phosphor technology with up to a 30,000-hour lifespan
5,000 ANSI Lumens offering bright images in any environment
Up to 300″ ultra large screen with lower cost-per-inch
Compact size and light weight reducing cost of transportation and installation
Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode
Specification
Projection System: 0.65″ 1080P
Native Resolution: 1920×1080
Brightness: 5000 (ANSI Lumens)
Brightness (Center Lumens): 5500
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.43-2.78, f=16.90-21.61mm
Projection Offset: 132%+/-10%
Throw Ratio: 1.13-1.47
Optical Zoom: 1.3X
Digital Zoom: 0.8x-2.0x
Image Size: 30″-300″
Throw Distance: 0.75-9.76m
(100″@2.50m)
Keystone: H:+/-30° , V:+/-30°
Audible Noise (Normal): 30dB
Audible Noise (Eco) : 24dB
Input Lag: 49.5ms
Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)
*RB-Reduced Blanking
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 24-120Hz
Input
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Output
Audio-out (3.5mm): 1
Speaker: 15W
USB Type A (Power): 1 (5V/1.5A)
Control
RS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 11.79A
Power Consumption: Normal: 210W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 3.00kg
Gross Weight: 4.70kg
Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
Packing Dimensions: 400x280x155mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 l
Manufacturer Link: https://www.viewsonic.com/au/products/projectors/LS740HD
Warranty: 36
