Ubiquiti Aggregation
SKU: USW-Aggregation

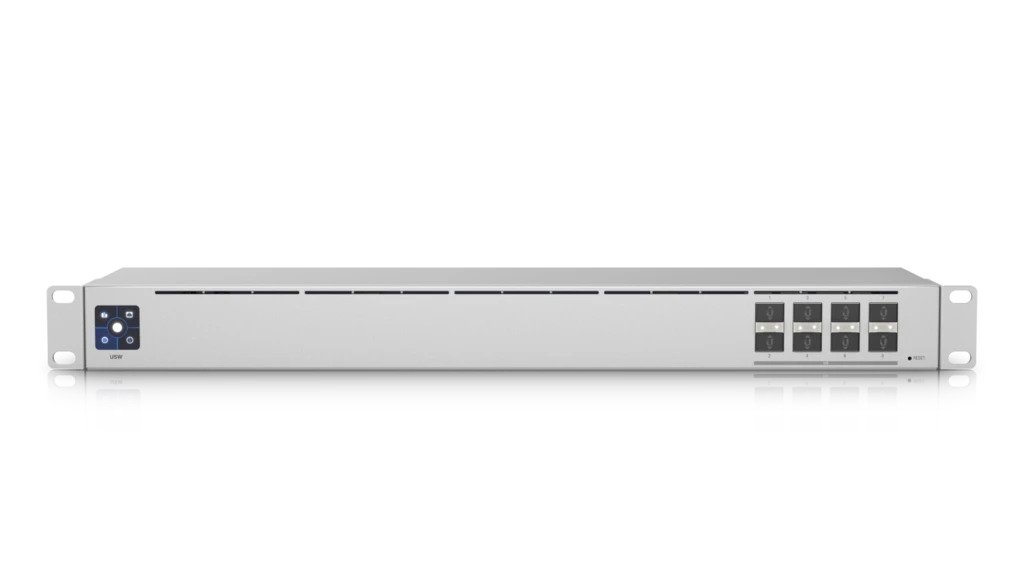

Description:USW-Aggregation is a managed Layer 2 switch with eight 10G SFP+ ports, offering link aggregation for higher capacity and increased availability. USW-Aggregation features Layer 2 capabilities and supports highbandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies. Built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately) in all eight ports.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•(8) 10G SFP+ ports
•Fanless, silent cooling
•Total Non-Blocking Throughput:80 Gbps
•Switching Capacity: 160 Gbps
•Forwarding Rate: 119.04 Mpps
•Max. Power Consumption: 30W
•Power Method Universal AC Input: 100-240VAC, 50/60 Hz
•Power Supply AC/DC, Internal: 36W
•Management Interface: EthernetIn-Band
•Modes: SMB Layer 2 GigabitEthernetSwitch
Optional Accessories :
NHU-UDC-1, NHU-UDC-2, NHU-UDC-3, NHU-UC-C6-CMP, NHU-UC-DAC-SFP+, RCLDR-WB-FT, RCLDR-SS450-4U-A, RCLDR-DS550-4U-A, RCLDR-SS450-6U-FP, RCLDR-DS550-4U-FP, NHU-U6-ENTERPRISE-IW, NHU-UICARE-USW-AGGREGAT-D
