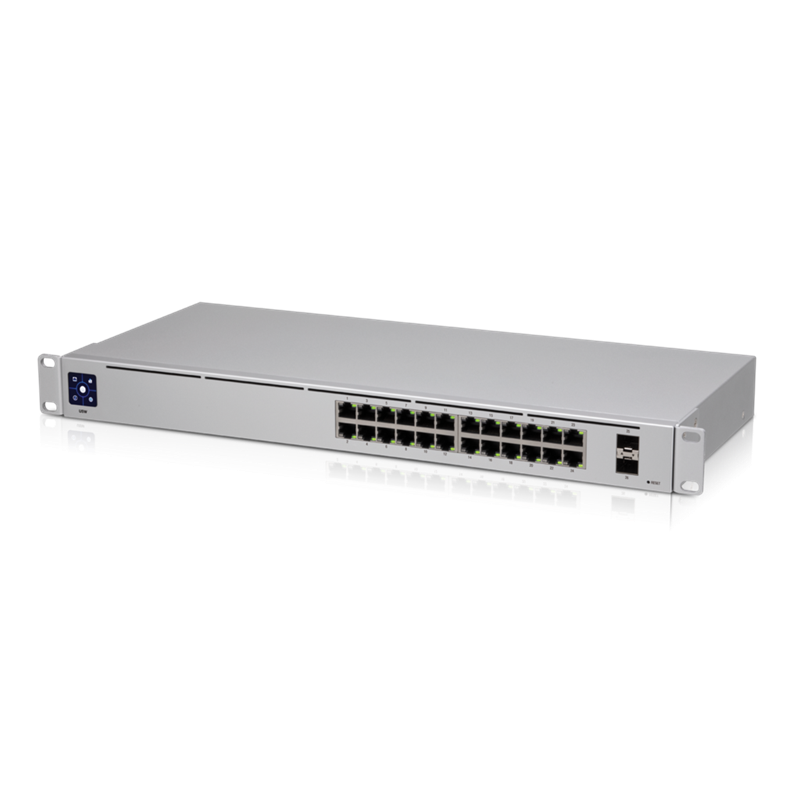

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3″ touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Features:
(24) Gigabit Ethernet Ports
(2) Gigabit SFP Ports
1.3″ color touchscreen for status information
Managed by UniFi Network Controller
Product Specifications
USW-24
Dimensions 442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72″)
Weight
With Rackmount Brackets 2.70 kg (5.95 lb)
2.79 kg (6.15 lb)
Interfaces 0
Interfaces
Networking
Management
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Ethernet In-Band
Power Method 100-240VAC, 50/60 Hz, Universal Input
Power Supply AC/DC, Internal, 36W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption 25W
LEDs
RJ45 Data Ports
SFP Data Ports
Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
Manufacturer Link: https://dl.ubnt.com/qsg/USW-24/
Warranty: 12
