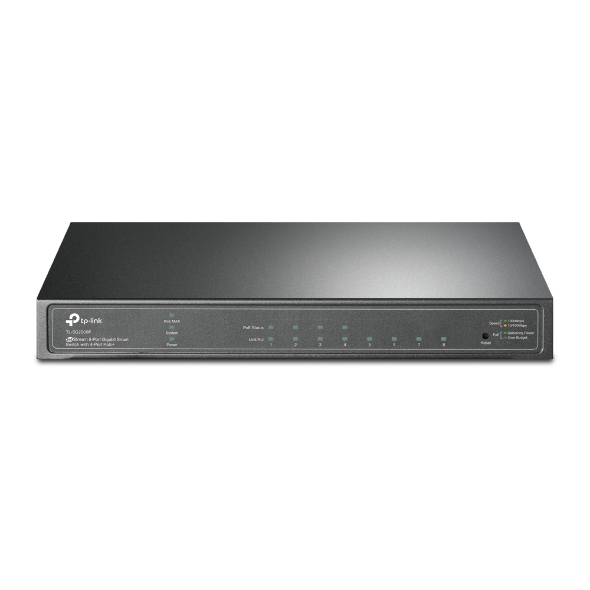

TP-Link TL-SG2008P JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+ With Omada SDN Supported
• Features 4 PoE+ ports, with a total PoE power budget of 62 W* and useful PoE power management features
• Omada SDN platform integration provides 100% centralized cloud management to create a highly scalable network
• Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
• L2/L3/L4 QoS and IGMP snooping optimise voice and video applications
• Gigabit Ethernet connections on all ports provide full speed of data transferring
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface • 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply • External Power Adapter (Output: 53.5 VDC/ 1.31 A)
Power Consumption • 7.9 W (220 V/50 Hz) (no PD connected)
• 79.2 W (220 V/50 Hz) (with 62 W PD connected)
PoE Ports (RJ45) • Standard: 802.3af/at compliant
• PoE Ports: 4 Ports
• Power Supply: 62 W*
Dimensions W x D x H 209 x 126 x 26mm
PERFORMANCE
Bandwidth/Backplane 16 Gbps
MAC Address Table 8k
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
MANAGEMENT
Omada App Yes
Optional Accessories :
NHTL-OC200, NHTL-OC300, CSP-LIC-OCC-1YR, CSP-LIC-OCC-3YR, CSP-LIC-OCC-5YR
