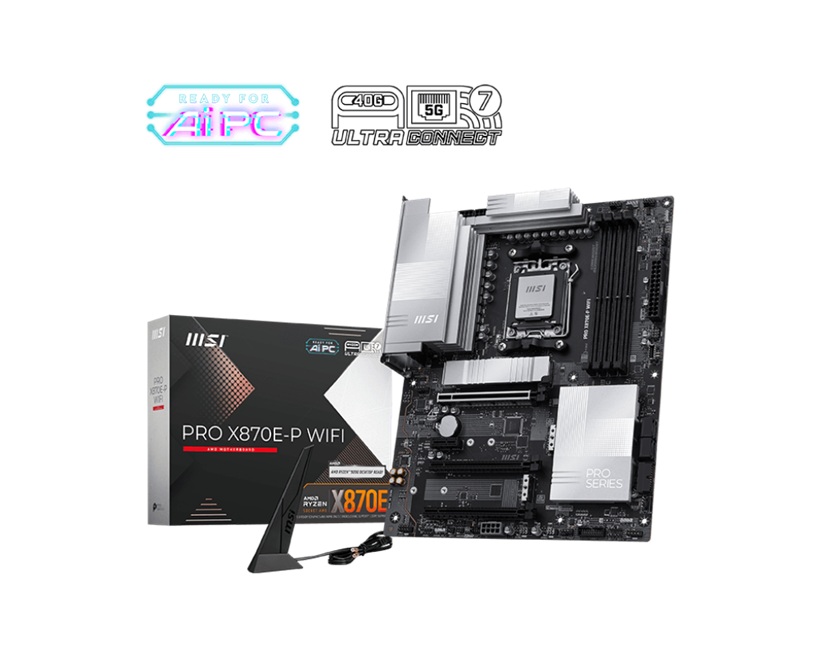

MSI PRO X870E-P WIFI, AM5, X870E, Ryzen 7000-9000, DDR5-8200+, PCIe5 x16, M.2 Gen5, WiFi7, BT5.4, 5G LAN, USB4, Audio7.1
SPECIFICATIONS
Model Name PRO X870E-P WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 series Desktop Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset
Expansion Slots
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot
2 x PCIe 3.0 x1 slots
Display Interface
1 x USB4 port supports USB Type-C display output,
Support 4K@60Hz as specified in HDMITM 2.1
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC)
Storage
1 x M.2 Gen5 x4 128Gbps slot,
2 x M.2 Gen4 x4 64Gbps slots,
4 x SATA 6Gbps ports
USB ports
1 x USB 40Gbps (1 Type-C),
1 x USB 20Gbps (1 Type-C),
3 x USB 10Gbps (2 Type-A + 1 Type-C),
6 x USB 5Gbps (6 Type-A)
10 x USB 2.0
LAN Realtek® 8126 5G LAN
Wireless / Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost
Optional Accessories :
