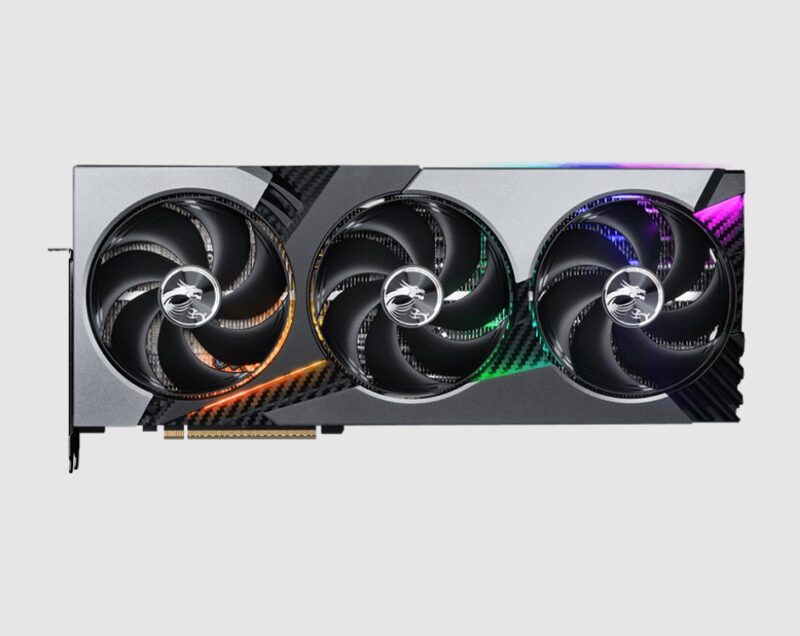

MSI nVidia GeForce RTX™ 5080 16G VANGUARD SOC, Boost: 2730 MHz, CUDA 10752 Units, 16GB GDDR7, HDMI™ x 1
Marketing Name GeForce RTX™ 5080 16G VANGUARD SOC
Model Name G5080-16VGS
Graphics Processing Unit NVIDIA® GeForce RTX™ 5080
Interface PCI Express® Gen 5 x 16
Core Clocks
Extreme Performance: 2745 MHz (MSI Center)
Boost: 2730 MHz (GAMING & SILENT Mode)
CUDA® CORES 10752 Units
Memory Speed 30 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1b)
HDCP Support Y
Power consumption 360W
Power connectors 16-pin x 1
Recommended PSU 850W
Card Dimension (mm) 357 x 151 x 66 mm
Weight (Card / Package) 1945 g / 2844 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
Optional Accessories :
