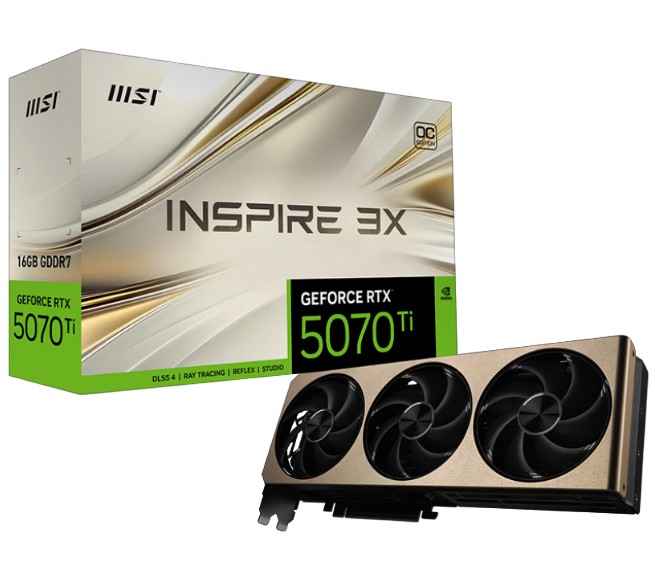

MSI nVidia GeForce RTX™ 5070 Ti 16G INSPIRE 3X OC PLUS, PCI Express® Gen 5, Boost: 2482 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1

SPECIFICATIONS

Marketing Name GeForce RTX™ 5070 Ti 16G INSPIRE 3X OC PLUS
Model Name G507T-16I3CP
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070 Ti
Interface PCI Express®Gen 5
Core Clocks Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 288 x 112 x 50 mm
Weight (Card / Package) 962 g / 1431 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES

Triple Fan
Three fans and a huge heatsink ensure a cool and quiet
experience for you.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.
Metal Backplate
A sturdy metal backplate strengthens the graphics card while the
airflow vent design reduces excess heat.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
Air Antegrade Fin
Fins with a V-shaped cutout are located at the airflow
passthrough to improve flow efficiency.
Wave Curved 3.0
Additional efficiency is gained by adjusting the size of the wave
edges under the fan motor and other spots where there is less
airflow.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
