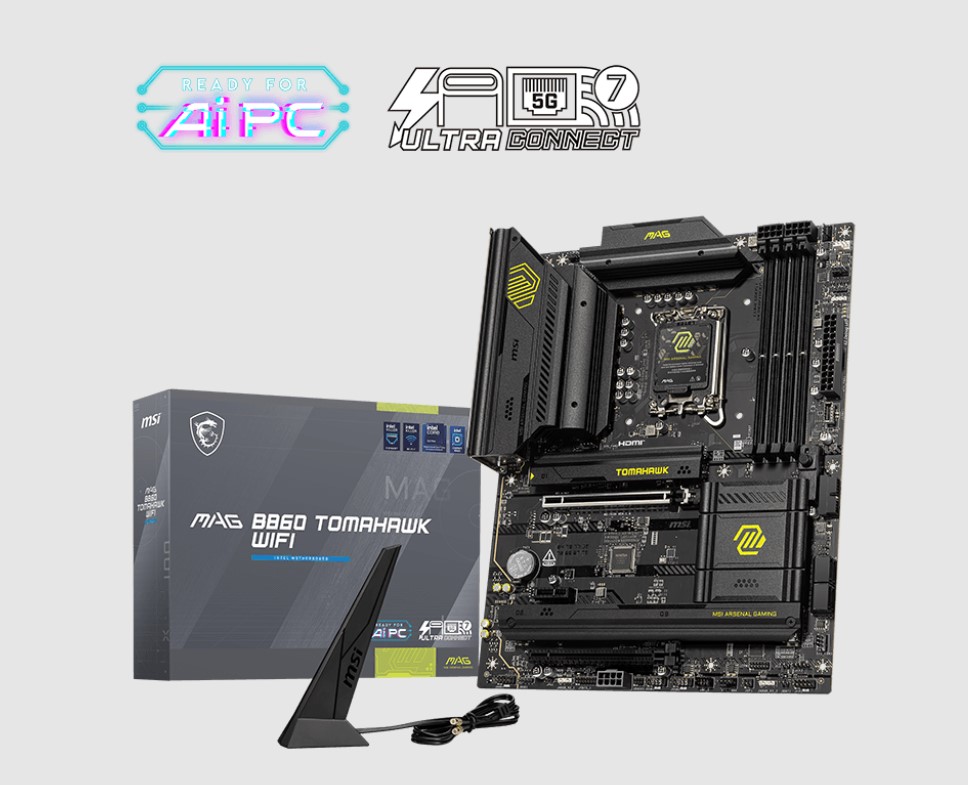

MSI MAG B860 TOMAHAWK WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 2x PCI-E x16 slot, 1x PCI-E x1, 3x M.2, 4x SATA 6G, 8x USB 2.0. Intel® Killer™ BE1750
Chipset
INTEL B860
CPU
Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Onboard Graphics
1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
Slot
2x PCI-E x16 slot
1x PCI-E x1 slot
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Storage
3x M.2
4x SATA 6G
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 40Gbps Type C (Rear)
WIRELESS LAN & BLUETOOTH
Intel® Killer™ BE1750x Wi-Fi 7
LED FEATURE
4x EZ Debug LED
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info ATX
243.84mmx304.8mm
Optional Accessories :
