MSI Cubi N ADL S-214BAU Mini PC barebone Intel N100,DDR4 upto 16GB, Intel HD Graphics, 1x M.2, 2x USB 3.2,
SPECIFICATIONS:
OPERATING SYSTEM no OC
CPU Intel® Processor N100 (6M Cache, 0.8 GHz up to 3.4 GHz)
CHIPSET Intel® SoC
GRAPHICS Intel HD Graphics (NA)
I/O Ports 2x RJ45
Cooler Fanless
STORAGE 1x M.2 SSD combo (NVMe PCIe Gen3 x2 / SATA)
MEMORY DDR4 3200 MHz Max 16GB SO-DIMM 1 Slots
Audio Realtek ALC256 2.1 Channel HD Audio
Communication 2x Realtek RTL8111H Intel Wireless AC 3168 + Bluetooth v4.2
Intel Wireless AC 9462 + Bluetooth v5

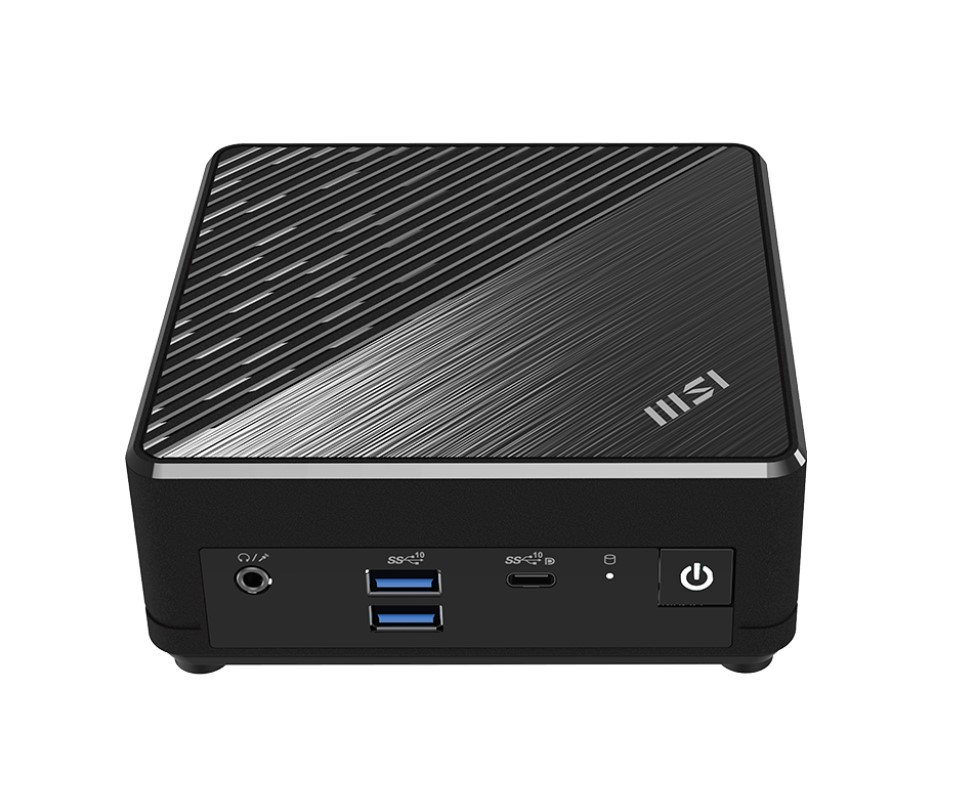

I/O (FRONT) 1x Mic-in/Headphone-out combo
1x USB 3.2 Gen 2 (10G) Type C
2x USB 3.2 Gen 2 (10G) Type A
I/O (REAR) 2x USB 2.0 Type A (R)
1x (v2.1) HDMI out
1x (v1.4) DP out
Kensington Lock Lock type
Power Supply 65W
VESA 100 x 100 mm
Product Dimension (WxDxH) 124 x 124 x 53.7 (mm)
Size 0.7L Liter
Weight 0.54 (Net kg)
1.39 (Gross kg)
Noise Level 28 db Idle mode
38 db Full loading mode
LAN 1x Realtek® RTL8111H
1x Realtek® RTL8125BG-CG
COOLING SYSTEM Fan Cooler
AC ADAPTER / PSU 65W
MANAGEMENT UTILITY MSI Center:
SECURITY UTILITY & DEVICE MSI Center: System Diagnosis
DIMENSION (WXDXH) 124 x 124 x 53.7 mm
WEIGHT (N.W./ G.W.) 0.55 kg / 1.4 kg
VESA MOUNT 100 x 100 mm / 75 x 75 mm
ACCESSORIES 1x User Manual (Optional)
1x Quick Guide
1x Warranty Card
1x Adpator
1x Power Cord
VESA Mount Scre
Optional Accessories :
