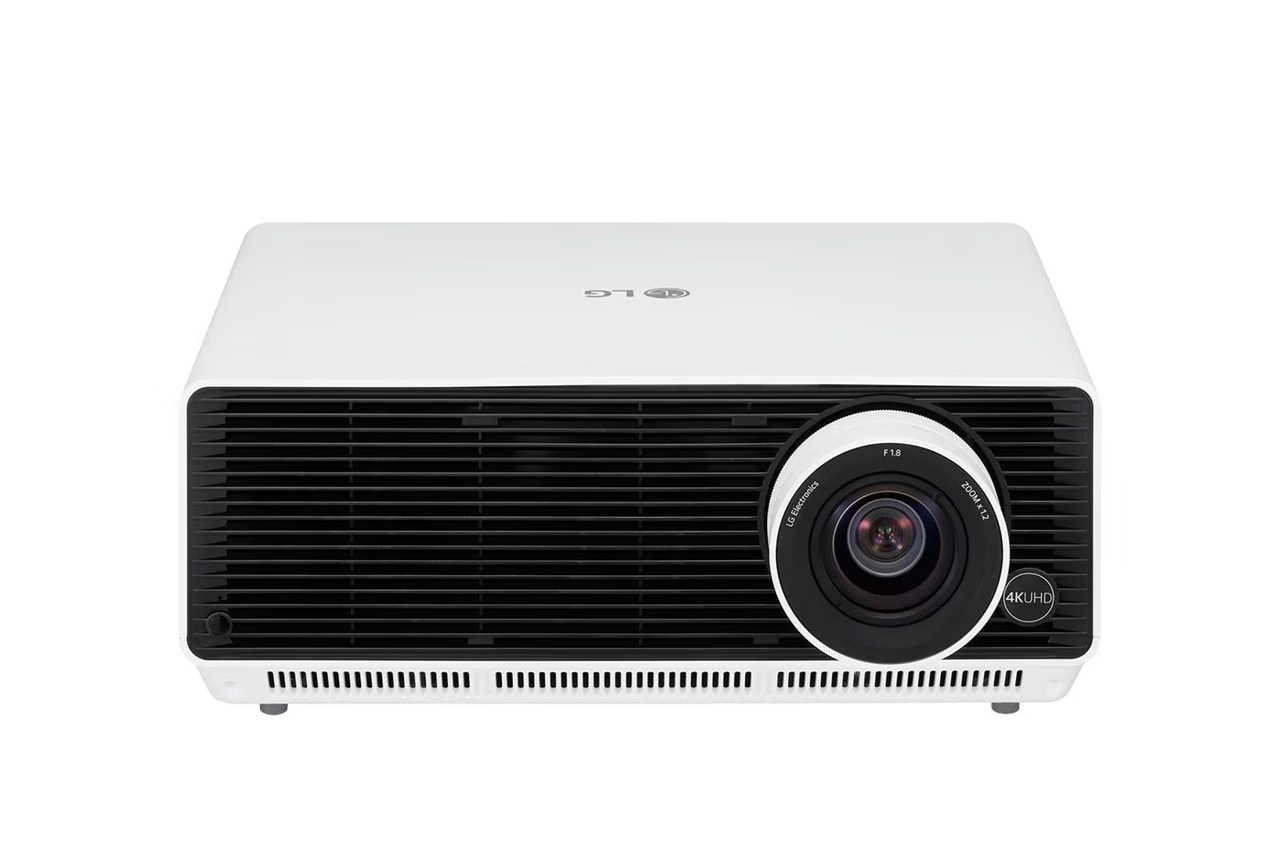

LG ProBeam 4K (3840×2160) Laser Projector with 5,000 ANSI Lumens Brightness
Key Features
•Laser 4K UHD
•8.3 Mega pixels (3840×2160)
•5,000 ANSI Lumens
•Short Throw
•Lens shift H ±20%, V ±50% / Zoom x 1.2
•SuperSign / LG Connected Care
SPECIFICATION
PROJECTION SYSTEM
Projection System
DLP
NATIVE RESOLUTION
Native Resolution
4K UHD (3840 x 2160)3)
BRIGHTNESS (ANSI LUMEN)
Brightness (ANSI Lumen)
5000
CONTRAST RATIO
Contrast Ratio
3,000,000:1 ↑
NOISE
Energy Saving Min. (Bright)
29
Energy Saving Med.
27
Energy Saving Off (Max)
26
UNIFORMITY
Uniformity (JBMMA 9 Point)
0.85
CHANGEABLE F#
Changeable F#
X
PROJECTION LENS
Focus (Auto / Manual)
Manual
Zoom
1.2x
PROJECTION IMAGE
Screen Size
40′ ~ 300′
Standard (lens to wall)
Wide 2017 /Tele 2454 (100”)
Throw Ratio
0.94 – 1.14
LENS SHIFT
Lens Shift
O ( Horiz ± 20% / Vert ± 50% )
PROJECTION OFFSET
Projection Offset
1
LIGHT SOURCE
Type
Laser (LD + P/W)
Life High Brightness
20,000 Hrs
ASPECT RATIO
Aspect Ratio Control
Full / Original
Panel Aspect Ratio Control
16:6 / 16:9 / 16:10 / 21:9 / 4:3
SOUND
Output
10W (5W+5W)
Dolby Surround Audio
X
DTS-HD
X
Clear Voice
○ (Clear Voice lll)
SIZE
Net Size (mm) (W x D x H)
370 x 290 x 155.7 370 x 290 x 143.7 (Without Leg)
Gross size (mm) (W x D x H)
580 x 441 x 273
WEIGHT
Net Weight (kg or g)
9,7Kg
Gross Weight (kg or g)
11.5KG
POWER
Power Consumption (Max.)
400W
Stand-by Power
0.5W↓
Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)
TEMPERATURE
Operation Temperature
0 ~ 40℃
INPUT SIGNAL COMPATIBILITY
Digital(HDMI)
Up to 4K (4096×2160) (60Hz, 50Hz, 24Hz)
INPUT/OUTPUT TERMINALS
Audio out
○(Phone jack)
RS-232C(in)
1
RS-232C(out)
1
IP control
○
RJ45
1
HDMI (in)
2
USB Type-A
2 (USB2.0)
HDMI (in)
2
USB Type-A
2 (USB2.0)
Optional Accessories :
