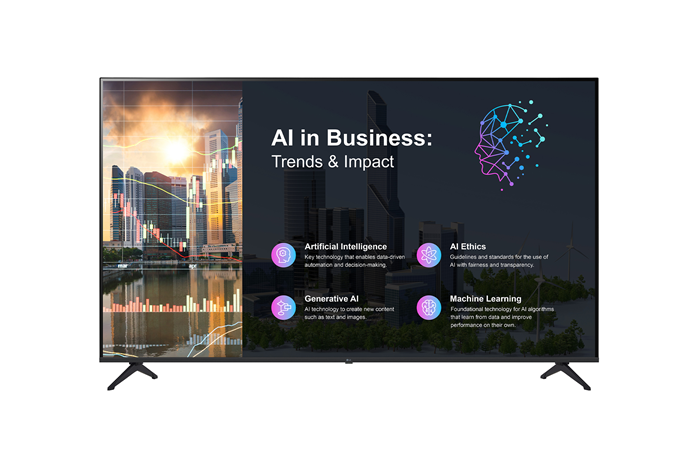

LG 75PK640S
Key Feature
•Resolution : 3,840 × 2,160 (UHD)
•Brightness : 300 nits
•Backlight Life : 30,000 Hrs, 16 Hrs / 7 Days
•LG Solution Compatibility
TECH SPECS
Category
TV Signage
Design
Tool Name UA75
Front Color Black
Stand Type 2 Poles
Display
Inch 75′
Resolution 3,840 X 2,160 (4K UHD)
Backlight Unit Type Direct
Brightness 300 nits / 260 nits (Max. / Typ.)
Dynamic Contrast Ratio (Dynamic MCI (Hz)) 1,000,000 : 1
Static (Panel) Contrast Ratio 1,200 : 1 (Typ.)
Response Time(G to G, ms) 8 ms (Typ.)
Refresh Rate 60 Hz
Backlight Life 30,000 Hrs, 16 Hrs / 7 Days
Video
SoC K25Lp
SoC (Marketing Name) Quad
HDR (10 Pro / HLG) Yes / Yes
Audio
Speaker System 2.0 ch
Speaker (Sound Output) 10 W + 10 W
LG Sound Sync Yes (Bluetooth or Optic)
Broadcasting System
Digital (ATSC / Clear QAM), Analog (NTSC), Teletext (Auto Teletext), Global IPTV Support (IP Streaming)
Smart Function
webOS25, Smart Home (Launcher Bar), Quick Access, Web Browser, Pre-Loaded App (YouTube Only), SDP Server Compatibility, SW Clock (World Clock / Alarm), Mood Display, Soft AP, Wi-Fi (802. 11ac), Screen Share (Miracast), Smart Share, DIAL, Bluetooth Audio Playback, Mobile Connection Overlay, HDMI-ARC (ARC, HDMI2)
Vertical Function
Signage (Corporate / Retail) Vertical Setup, Fail Over, Play via URL, Crestron Certi. Compatibility, DPM (Digital Power Management), Time Scheduler, NTP Sync Timer, BEACON, Embedded CM (Content Manager), Embedded GM (Group Manager)
SuperSign SW Compatibility Control / Control Plus, CMS (Premium), Simple Editor, LG ConnectedCare
Set Side HDMI In (2.0), USB (2.0), RF In (Only 75′), RS-232C (Phone Jack, 4 Pin (86/65/55/50/43′), External Speaker Out (3.5 mm Phone Jack (65/55/50/43′))
Set Rear / Bottom RF In (86/65/55/50/43′), Digital Audio Out (Optical), RS-232C (Phone Jack, 4 Pin (86/65/55/50/43′), External Speaker Out (3.5 mm Phone Jack (86/75′)), RJ45 (Usage Purpose (LAN))
Other Feature
USB Cloning, WOL, SNMP, Diagnostics (Self Diagnostics (USB)), SI Compatible Protocol (TV Link Tuner), HTNG-CEC, Simplink (HDMI-CEC (1.4)), IR Out (RS-232C Phone Jack Type), Multi IR Code, Hotel Mode / PDM / Installer Menu, Lock Mode (Limited), Port Block, Welcome Screen (Splash Image), Insert Image, IP Channel Manager, External Speaker Out (Audio Out with 3.5 mm Phone Jack), Moving Picture Playback (SD / HD / Plus HD), Auto Off / Sleep Timer, Energy Saving Mode, Motion Eye Care
Dimension
VESA Compatible 300 × 300 mm
W x H x D / weight (with stand) 1,668 × 1,031 × 344 mm / 24 kg
W x H x D / weight (without stand) 1,668 × 960 × 59.8 mm / 23.5 kg
W x H x D / weight (Shipping) 1,875 × 1,150 × 175 mm / 33.6 kg
On Bezel Width (L/R/U/B) 9.4/9.4/9.4/18 mm
Off Bezel Width (L/R/U/B) 7.3/ 7.3/7.3/2.5 mm
Power
Power Supply (Voltage, Hz) AC 100-240 V, 50-60 Hz
Power Consumption (Typ. / Max.) 201 W / 170 W
Standby Power Consumption Under 0.5 W
Certification
Safety UL
EMC FCC Class B
Others ISTA6
Accessory
Remote Type (L-Con, AKB75095376), Power Cable (86/75′ : 2 m, 65/55/50/43′ : 1.5 m), RS-232C to Phone Jack Cable
Optional Accessories :
