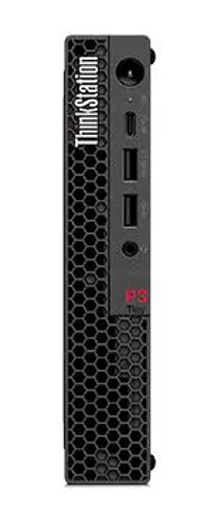

LENOVO ThinkStation P3 Tiny Intel i7-14700 16GB DDR5 1TB SSD WIN 11 PRO NVIDIA® RTX A400-4GB Graphics 770 3yr Premier 300W PSU AI Workstation Desktop
PERFORMANCE
Processor Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
AI PC Category AI-Ready Workstations
Processor Sockets 1x FCLGA1700
Integrated Graphics Integrated Intel® UHD Graphics 770
Discrete Graphics 1x NVIDIA® RTX A400 4GB
Chipset Intel® Q670 Chipset
Memory 1x 16GB SO-DIMM DDR5-5600 Non-ECC
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 96GB (2x 48GB DDR5 SO-DIMM)
PCIe NVMe Controller Integrated NVMe® controller
PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe® 4.0×4 Performance NVMe® Opal
Audio Chip High Definition (HD) Audio, Realtek® ALC256VB codec
Power Supply 300W 90% Adapter
DESIGN
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots One PCIe® 4.0 x8, low-profile
Case Color Black
Dust Filter None
Toolless Chassis Screw None
Mounting None
Stand None
Dimensions (WxDxH) Tiny only | 179 x 182.9 x 37mm with rubber feet (7.0 x 7.2 x 1.5 inches with rubber feet)
Tiny & ODD | 204.2 x 186.6 x 64 mm with rubber feet (8.04 x 7.35 x 2.52 inches with rubber feet)
Weight 1.4 kg (3 lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet Intel® I219-LM, 1x GbE RJ-45
Optional Ethernet None
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.1, vPro®
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
Rear Ports 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4
1x Ethernet (RJ-45)
Optional Rear Ports (configured) 4x miniDP 1.4a on NVIDIA® RTX A400
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Cable Lock No Cable
Chassis Intrusion Switch Chassis Intrusion Switch
MANAGEABILITY
System Management Intel® vPro® Enterprise with Intel AMT 16
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite
CERTIFICATIONS
ISV Certifications Please visit ISV certifications for Lenovo® Workstations
Mil-Spec Test MIL-STD-810H military test passed
Optional Accessories :
