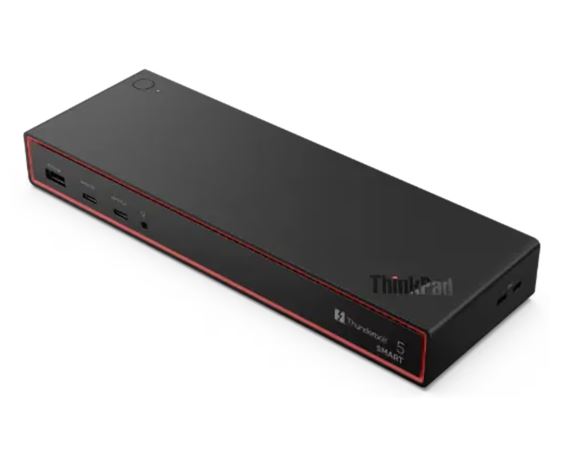

LENOVO ThinkPad Thunderbolt 5 Smart Dock 7500 – 180W PD 2xThunderbolt 5 2xUSB-C 1xHDMI 2xDP 3xUSB-A 1×2.5Gb LAN Audio Jack Supports 5 displays
General
Brand ThinkPad
Color Eclipse Black
Dimension
Packed Dimensions (L x D x H) 260 mm x 165 mm x 74 mm
Weight 585 g with Cable
Packed Weight 1730 g
Others
OS Requirements Windows macOS Linux
What is in the box 1 x Thunderbolt 5 Smart Dock with integrated 1 m Thunderbolt 5 cable; 1 x 265W Power Adaptor; 1 x Power Cable; 1 x Lenovo Accessories Fleet Manager Flyer; 1 x Setup poster; 1 x Warranty Poster
Maximum Operating Temperature 40℃
Minimum Relative Humidity (%) 20%
USB Ports Front: 1 x USB-A 3.2 Gen 2 (10 Gbps data, AOU 12W), 2 x USB-C data port (10 Gbps data, AOU 15W), Back: 2 x USB-A 3.2 Gen 2 (10 Gbps data, 10W), 2 x TBT 5, Full Function (15W)
Output Power 180W
Warranty Type CRU
Warranty Period 3 Year
AC Plug Yes
Input Power 265W
Depth 80 mm
Maximum Relative Humidity (%) 95%
Package Type Brown Box
Ethernet 2.5 Gbps
Charging Port USB-C
Physical Security Feature Kensington Nano Lock, Kensington Micro Lock
Max Number of External Monitors 4
Height 30 mm
Agency Approvals FCC/ICES, CE, KCC, RCM, BSMI, NCC, VCCI, CB, cULus, EAC, TUV-Mark, Ukraine DoC, NOM, IFT, TELEC, UKCA, VNTA, WPC ETA, SRRC, SDPPI, IMDA, SIRIM, NBTC, SUBTEL, KVALITET/RATEL, MCIT, ANRT, UCC, INACOM, CITRA, TRA, NTC, PSRC, ARTCI, INCM,Thunderbolt Cert, EVO
Video Ports 2 x DP 2.1, 1 x HDMI 2.1, 2 x TBT 5 Full Function
Refresh Rate 8K / 60 Hz
Minimum Operating Temperature 0℃
Length 235 mm
Driver Needed Yes
Hardware Requirements Systems with USB-C/Thunderbolt port
Power Delivery PD 3.1
Power Button Yes
Audio Ports 3.5 mm
Thunderbolt Port 2
