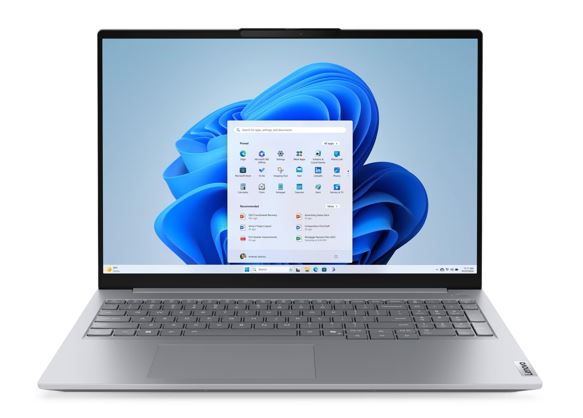

LENOVO ThinkBook 16 G8 16′ WUXGA Intel U5-225U 16GB DDR5 512GB SSD WIN 11 PRO Intel Graphics AI PC NPU 12 TOPS 1yr OS 1.7kg
PERFORMANCE
Processor
Intel® Core™ Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB
AI PC Category
AI PC
NPU
Integrated Intel® AI Boost, up to 12 TOPS
Graphics
Integrated Intel® Graphics
Chipset
Intel® SoC Platform
Memory
2x 8GB SO-DIMM DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-5600
Storage
512GB SSD M.2 2242 PCIe® 4.0×4 NVMe®
Max Storage Support
Up to two drives, 2x M.2 SSD
• M.2 2280 SSD up to 2TB each
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Card Reader
SD Card Reader
Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby Audio™
Camera
FHD 1080p + IR Hybrid with Privacy Shutter
Microphone
2x, Array
Battery
45Wh
Power Adapter
65W USB-C® (3-pin)
Special Features
Modern Standby
DESIGN
Display
16′ WUXGA (1920×1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz
Touchscreen
None
Color Calibration
None
Keyboard
Backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Color
Arctic Grey
Surface Treatment
Anodizing Sandblasting (Top), Texture (Bottom)
Case Material
Aluminium (Top), PC-ABS (Bottom)
Pen
Pen Not Supported
Dimensions (WxDxH)
356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches)
Weight
Starting at 1.7 kg (3.75 lbs)
SOFTWARE
Operating System
Windows® 11 Pro, English (US) / English (UK)
Bundled Software
Office Trial
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 6E, 802.11ax 2×2 + BT5.3
WWAN
Non-WWAN
Ethernet
100/1000M (RJ-45)
Standard Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort™ 1.4
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x SD card reader
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®.
For more compatible docking solutions, please visit Docking for ThinkBook® 16 G8 IAL
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks
Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security
Camera privacy shutter
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management
Non-vPro®
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
1Y Onsite upgrade from 1Y Courier/Carry-in
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications
TÜV Rheinland® Low Blue Light (Software Solution)
Mil-Spec Test
Optional Accessories :
NAL-ESSKBM, NAL-40AF0135AU, OSL-5WS0K27114, NAL-4X30H56796, NAL-40AY0090AU, OSL-5WS0T36120, NAL-4X40N18009, NAL-4XC1B34802, OSL-5WS0K27102, NAL-KBMWG2, OSL-5TS1J33913
