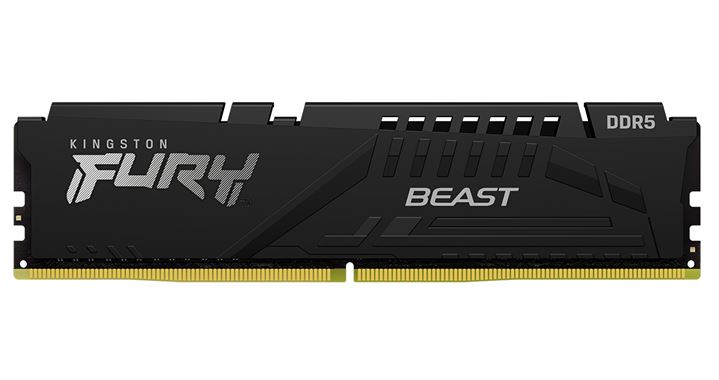

Kingston 32GB (1x32GB) DDR5 5600MT/s CL36 FURY Beast Black EXPO Memory
Kingston FURY KF556C36BBE-32 is a 4G x 64-bit (32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module.
The module supports AMD® EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V.
The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
DEFAULT FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37′ (34.9mm), w/heatsink
DEFAULT SPECIFICATIONS
CL(IDD) 40 cycles
Row Cycle Time (tRCmin) 48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V – 0
Operating Temperature 0 to +85C
Storage Temperature -55 C to +100 C
