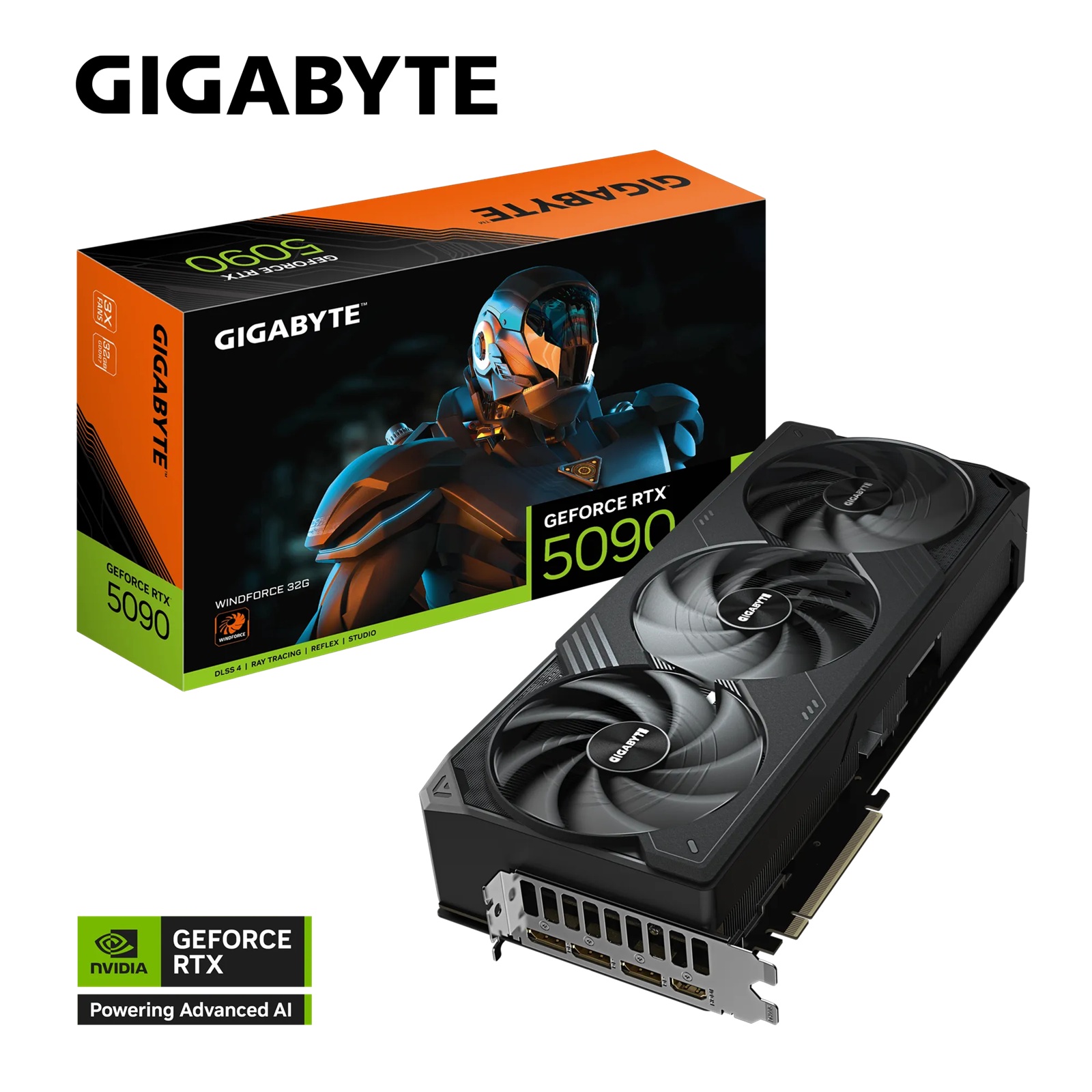

Gigabyte GeForce RTX™ 5090 WINDFORCE 32G, 2407 MHz, CUDA 21760, 28 Gbps, GDDR7, 512 bit, PCI-E 5.0, PSU 1000W, DisplayPort 2.1b *3 HDMI 2.1b *1
SPECIFICATION
Graphics Processing
GeForce RTX™ 5090
Core Clock
2407 MHz (Reference card : 2407MHz)
CUDA® Cores
21760
Memory Clock
28 Gbps
Memory Size
32 GB
Memory Type
GDDR7
Memory Bus
512 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=342 W=150 H=65 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
1000W
Power Connectors
16 Pin*1
Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
1. Quick guide
2. 1x 12V-2×6 to 4x PCIe 8pin adapter
3. Versatile VGA holder
4. Versatile VGA holder manual
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5090
Integrated with 32GB GDDR7 512bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
EXCELLENCE IN ESSENTIAL
DUAL BIOS (Performance / Silent)
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
VERSATILE VGA HOLDER
Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.
SUPERIOR CRAFTSMANSHIP
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the convention
