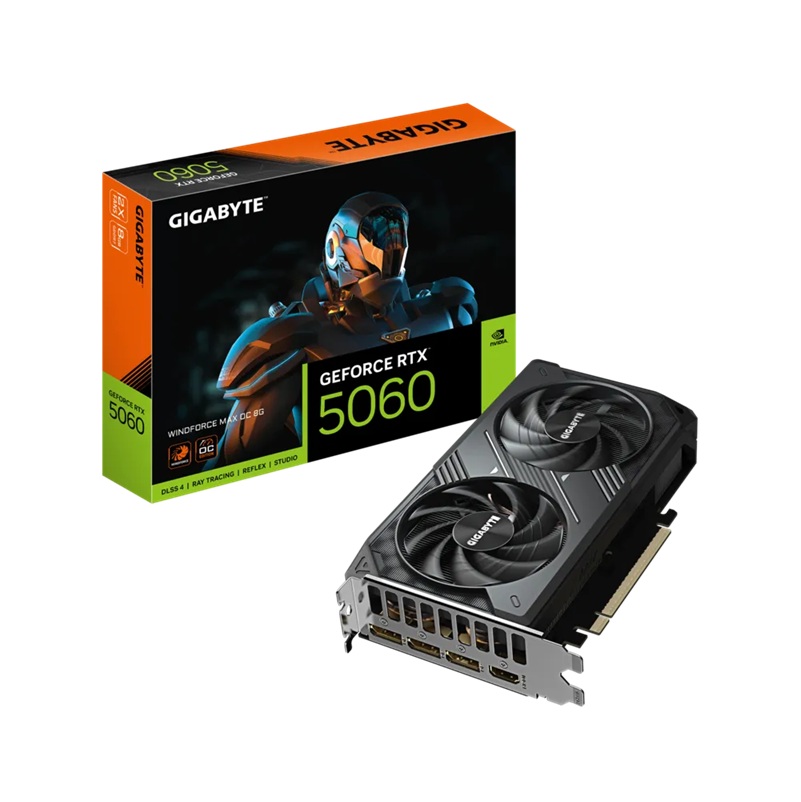

Gigabyte GeForce RTX™ 5060 WINDFORCE 2 MAX OC 8G, 2512MHz, CUDA 3840, 28Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 550W, DisplayPort 2.1b *3 HDMI 2.1b *1
SPECIFICATION
Graphics Processing
GeForce RTX™ 5060
Core Clock
2512 MHz (Reference card : 2497MHz)
CUDA® Cores
3840
Memory Clock
28 Gbps
Memory Size
8 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=199 W=116 H=40
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
550W
Power Connectors
8 Pin*1
Output
DisplayPort 2.1b *3
HDMI 2.1b *1
FEATURES
•Powered by the NVIDIA Blackwell architecture and DLSS 4
•Powered by GeForce RTX™ 5060
•Integrated with 8GB GDDR7 128bit memory interface
•WINDFORCE cooling system
•Hawk fan
•Server-grade Thermal conductive gel
•Reinforced structure
Optional Accessories :
