FEATURES
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3090
- Integrated with 24GB GDDR6X 384-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0
- Protection metal back plate
CORE CLOCK
- 1755 MHz (Reference card: 1695 MHz)

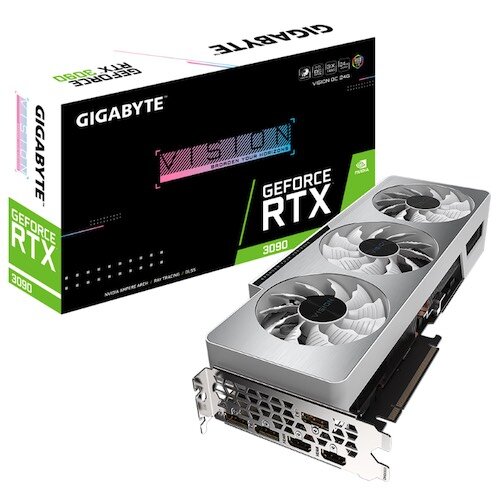

Gigabyte GeForce RTX™ 3090 VISION OC 24G In Depth
- CREATE YOUR WORK FASTER THAN EVER Powerful GeForce RTX™ 30 VISION series accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING、3D ANIMATION、PHOTOGRAPHY、GRAPHIC DESIGN、ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.
- WINDFORCE 3X COOLING SYSTEM The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
- ALTERNATE SPINNING Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
- 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
- UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
- GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
- SCREEN COOLING Extended heatsink design allows air flow to pass through, providing better heat dissipation.
- LARGE COPPER PLATE & HEAT-PIPE With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
- RGB FUSION 2.0 With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
- PROTECTION METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
- EXTREME DURABILITY & OVERCLOCKING The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
- FRIENDLY PCB DESIGN Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
- NVIDIA NVLINK™ SUPPORT Support for NVIDIA NVLink™ (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in your gaming.
- AORUS ENGINE The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Gigabyte GeForce RTX™ 3090 VISION OC 24G Specifications
Analog Max Resolution | None |
Card Interface | PCI-E 4.0 x 16 |
Card Size | L=320 W=126 H=55 mm |
Chipset Manufacturer | GeForce RTX™ 3090 |
Core Clock (MHz) | 1755 MHz (Reference card: 1695 MHz) |
Core Technology | CUDA® Cores 10496 |
Digital Max Resolution | 7680×4320@60Hz |
DirectX S | 12 Ultimate |
Fan/Heat Sink | WINDFORCE 3X Cooling System with alternate spinning fans |
Form Factor | ATX |
Graphic Chipset | GeForce RTX™ 3090 |
Input/output | DisplayPort 1.4a *3 HDMI 2.1 *2 |
Memory | 24GB GDDR6X |
Memory Bus | 384 bit |
Memory Clock (MHz) | 19500 MHz |
Memory Size | 24GB |
Memory Type | GDDR6X |
Warranty | 3 Years |
Wattage | 750W |
