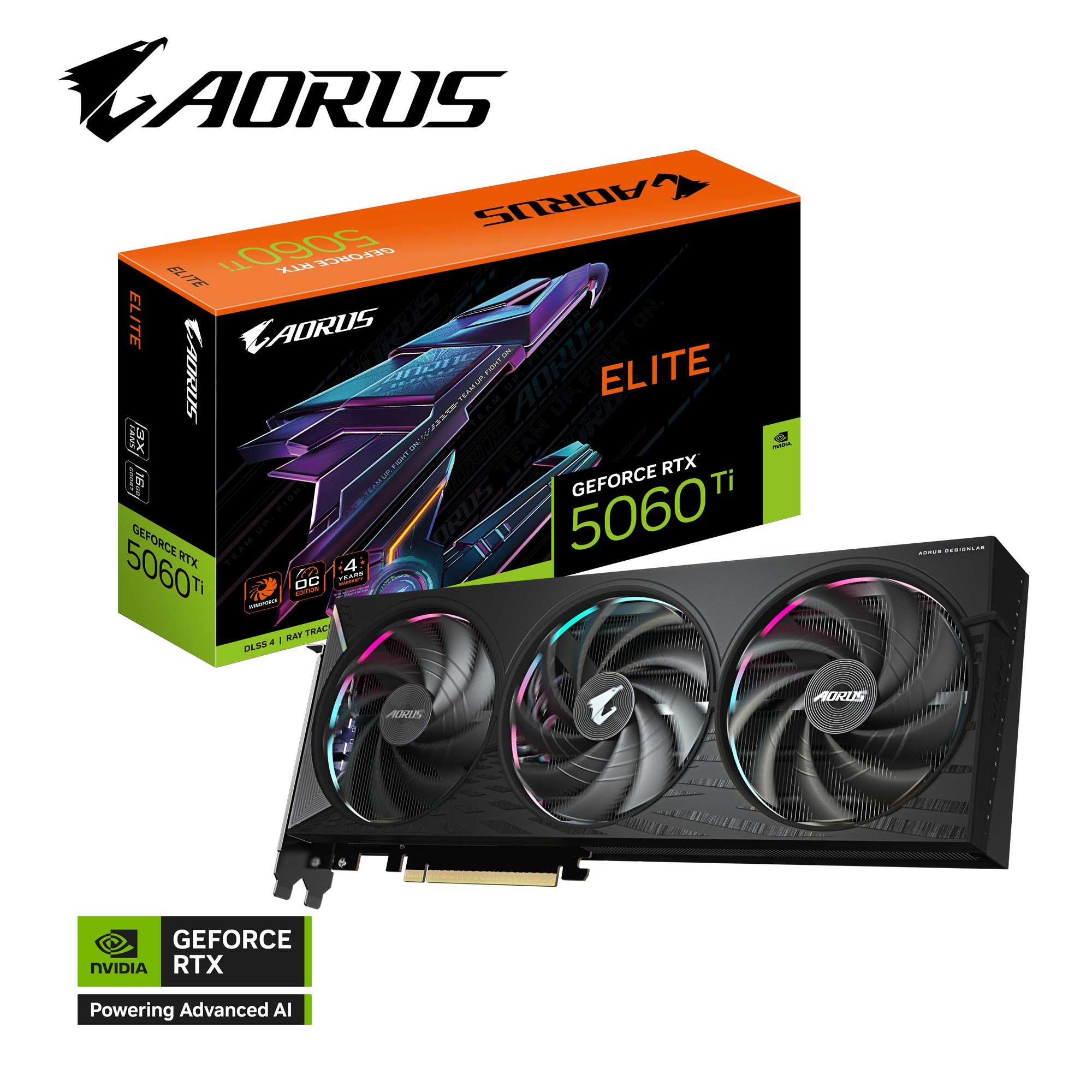

Gigabyte AORUS GeForce RTX™ 5060 Ti ELITE 16G, 2722 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1
SPECIFICATION
Graphics Processing
GeForce RTX™ 5060 Ti
Core Clock
2722 MHz (Reference card :2572 MHz)
CUDA® Cores
TBD
Memory Clock
28 Gbps
Memory Size
16 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=329 W=128 H=41 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 Pin*1
Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
1. Quick guide
2. Warranty registration
3. AORUS metal sticker
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Halo
Dual BIOS (Performance / Silent)
Reinforced structure
4 years warranty (Online registration required)
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
UNCOMPROMISING CRAFTSMANSHIP & PERFORMANCE
Shuttling through the AORUS universe, the iconic light slices through the visual field, while extreme speed leaves afterimages that culminate in a truly one-of-a-kind symbol.
SPEED WITH AFTERIMAGE EFFECT
The design focuses on extensive afterimage effects to convey an intense sense of extreme speed on the front cover, with the visuals converging into the fans. Paired with a matte surface texture, the overall appearance is imbued with a mysterious yet dynamic aura.
OVERLAY DESIGN
The AORUS logo on the side utilizes an overlay design to create a gradient effect, enriching the visual layers while also presenting a dynamic and vibrant aesthetic.
RGB HALO
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
