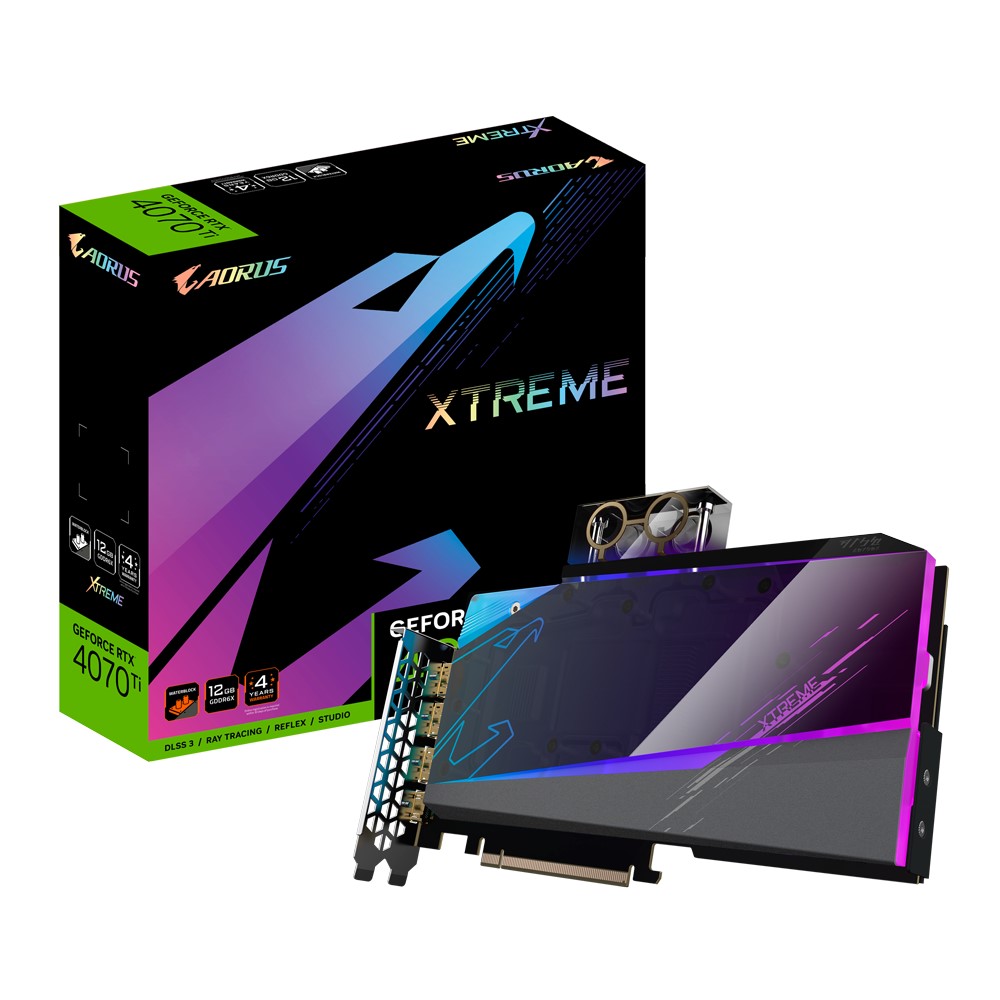

Gigabyte AORUS GeForce RTX™ 4070 Ti 12GB XTREME WATERFORCE WB, 2700 MHz, CUDA 7680, 21 Gbps, GDDR6X, 192 bit, PCI-E 4.0, PSU 750W, HDMI 2.1a *1
SPECIFICATIONS
Graphics Processing
GeForce RTX™ 4070 Ti
Core Clock
2700 MHz (Reference Card: 2610 MHz)
CUDA® Cores
7680
Memory Clock
21 Gbps
Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
192 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=252 W=163 H=29 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
750W
Power Connectors
16 pin * 1
Output
DisplayPort 1.4a *3
HDMI 2.1a *1
Fitting type
G1/4′
Accessories
1. Quick guide
2. Warranty registration
3. WATERFORCE water block installation guide
4. AORUS Metal sticker
5. Xtreme Robot Limited Edition with AORUS flag
6. One 16-pin to triple 8-pin power adaptor
7. Thermal grease
Note
*Please use non-corrosive coolant.
KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 Ti
Integrated with 12GB GDDR6X 192bit memory interface
WATERFORCE Water Block cooling system
Patented Leak detection
RGB Fusion
Protection metal back plate
4 Years Warranty (Online registration required)
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
New Streaming Multiprocessors
Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering
Third-Gen RT Cores
Up to 2x ray tracing performance
WATERFORCE COOLING SYSTEM
Designed for DIY PC enthusiasts who aim to create unique custom loop builds while achieving the highest possible performance in silence. AORUS provides an all-round cooling solution that actively cools critical parts, such as the GPU, VRAM, and MOSFET, to ensure system stability during high overclocking.
OPTIMAL SPACING ON MICROCHANNEL
The optimal spacing between the micro fins allows for significant heat transfer from the GPU via stable water flow and prevents blocking.
HIGH PERFORMANCE MICRO FINS
The micro fins over the GPU increase the contact area with liquid flows. In addition, we have shortened the distance between the water channel and the GPU to provide more efficient heat dissipation.
LARGE COPPER BASE PLATE
The large copper base plate covers the entire water channel over the GPU, VRAM, and other critical parts, so the heat can then be quickly taken away.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
EXCELLENT IN ESSENTIAL
PATENTED LEAK DETECTION
The water block is built in with a leak detection circuit covering the entire waterblock, which promptly alerts users by flash warning light in case of any liquid leaks.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
PCB COATING
Dust resistant – shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant – prevents unwanted conduction paths and board damage.
Corrosion resistant – protects from salt spray, humidity, and corrosion.
