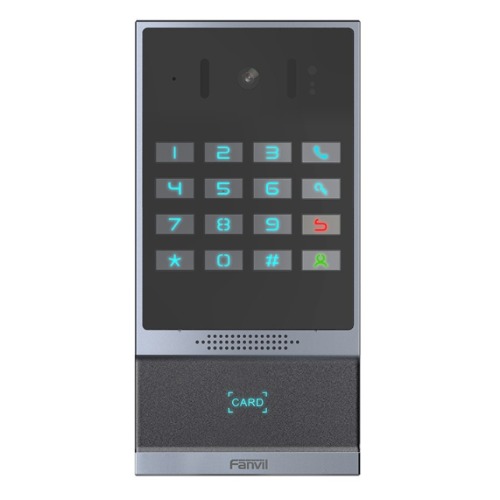

Fanvil i64‑2 Wire is a rugged SIP video door phone designed for secure access control in residential, commercial, and industrial environments. Unlike the standard Ethernet model, the 2‑Wire version uses PLC (Power Line Communication) technology to transmit both power and data over existing two‑wire cabling, making it ideal for retrofit projects where rewiring is difficult.
Fanvil i64‑2 Wire Description
• Purpose: Video door phone with SIP support, designed for secure entry control.
• Connectivity: PLC 2‑Wire interface for power + data over two wires.
• Access Methods: RFID cards, PIN codes, BLE keys, DTMF unlock, remote unlock via indoor station or app.
• Video: Built‑in HD camera with infrared night vision, wide viewing angle.
• Audio: HD voice, Acoustic Echo Cancellation (AEC), full‑duplex hands‑free.
• Interfaces:
2 × short‑circuit inputs (exit button, door contact, IR sensor)
2 × relay outputs (electric locks, alarm lights)
Wiegand interface for card readers
RS‑485 interface for advanced integration
12 VDC / 0.5 A auxiliary power output
Optional Accessories :
