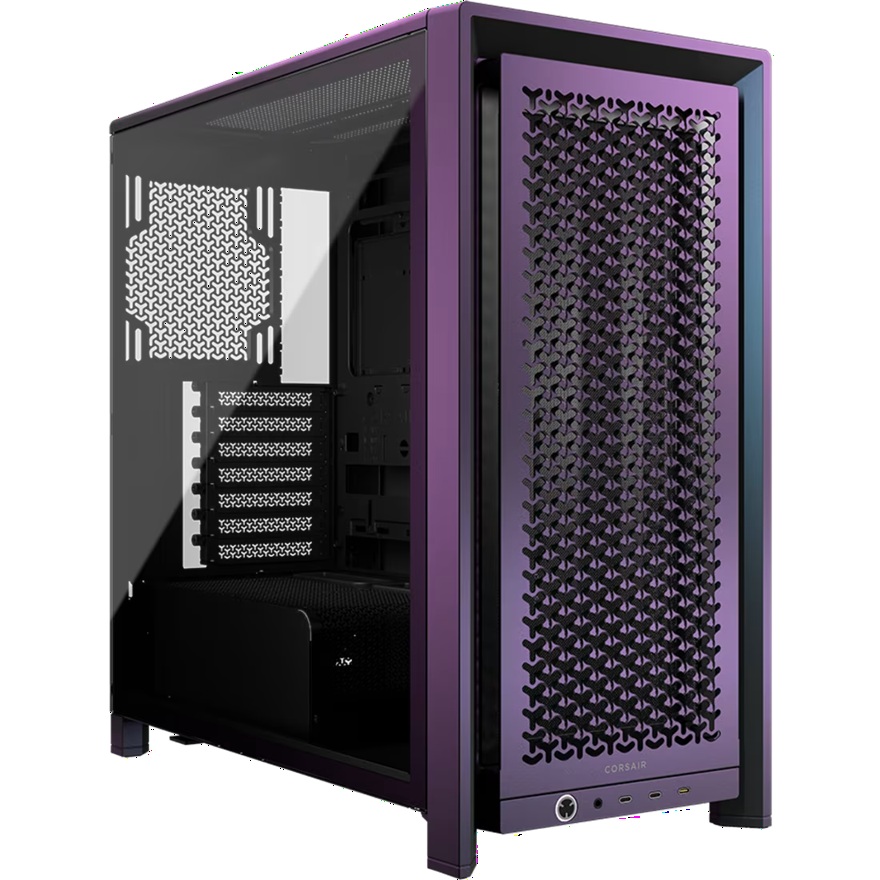

Corsair FRAME 4000D Vault Series Modular Mid-Tower PC Case – Galaxy, ATX/E-ATX, TG panel, modular, 430mm GPU, 170mm CPU clr, 360mm rad, USB-C, 7 slots, 2yr wty
•Chromatic paint that shifts color with viewing angle and lighting
•Aluminum badge with limited edition etching, only 1337 of each color made
•Full-Tempered Glass Side Panel and Compact PSU Shroud
•Modern Front I/O panel with 3x USB Type-C ports
•InfiniRail™ Fan Mounting System for easier building
•Dual 360mm radiator support
•GPU Anti-sag Stabilization Arm
•Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH
COLOR GALAXY
Tech Specs
Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height 486mm
Case Length 490mm
Case Width 239mm
Material Steel, Tempered Glass, Plastic
Color BLACK
Case Size Mid-Tower
Radiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mm
Case Window Tempered Glass
Compatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITAN
Case Warranty 2 Year
Internal 3.5′ Drive Bays 1
Internal 2.5′ Drive Bays 2
Maximum CPU Cooler Height 170mm
Maximum PSU Length 220mm
Case Front IO (1x) USB 3.2 Gen 2×2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out
Maximum GPU Length 430mm
Weight 12.54kg
Case Expansion Slots 7 Horizontal or 3 Vertical
Case Power Supply ATX
Radiator Support – Top 360mm, 280mm, 240mm
Radiator Support – Front 360mm, 280mm, 240mm
Radiator Support – Bottom None
Radiator Support – Side 360mm, 280mm, 240mm
Radiator Support – Rear 140mm, 120mm
Fan Support – Top 3x 120mm, 2x 140mm
Fan Support – Front 3x 120mm, 2x 140mm, 2x 200mm
Fan Support – Bottom 3x 120mm
Fan Support – Side 3x 120mm; 2x 140mm
Fan Support – Rear 1x 120mm, 1x 140mm
Front IO Motherboard Connections 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio
Reverse Connector Motherboard Support Yes
Included Fans No Fans Included
Dust Filtration Yes
Cable Routing Space 37mm
RapidRoute Included No
Left Side Panel Tempered Glass
Right Side Panel Steel
Vertical Mount Support Supported (Riser Card Sold Separately)
