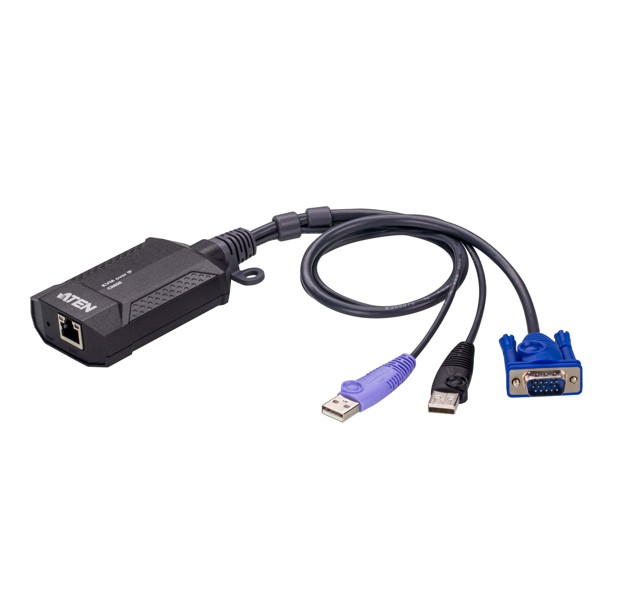

The ATEN CN800 offers superior video quality with HD resolutions up to 1920 x 1200 @ 60 Hz, facilitating easier KVM access. The CN800 USB VGA KVM over IP Mini provides ‘over-IP’ access control for conventional KVM switches lacking built-in over-IP functionality. It enables system operators to monitor and access computers remotely using Windows and Java-based application programs. The CN800 connects to an intranet, either LAN or WAN simply by using an industry-standard Cat 5e/6 cable and to a target computer or server. WinClient and JavaClient are available for remote access, enabling IP connection and login from anywhere over the internet.
The ATEN CN800 uses the standard TCP/IP protocols for communication. It allows the connected server or computer to be accessed from any computer over the internet – whether that computer is located down the hall, in other areas of the country, or branch offices in other parts of the world. The CN800 provides a fast, reliable, and cost-effective way to remotely access and manage widely distributed multiple computer installations.
Hardware
Provides over-IP capability to KVM switches that do not have built in over-IP functionality
Supports multi-platform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media Support
High video resolution – up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
Enhanced FPS (frames per second) throughput for crisp responsive video display
Bus-powered – no external power adapter required
Management
Up to 64 user accounts
Up to 32 users concurrent logins
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Supports instant notification of critical system events via email, SNMP trap, and Syslog
Remote firmware upgradable
Multi-user Mode allows multiple users to gain access to a server simultaneously
Integration with ATEN CC2000 Centralized Management Software
Integration with ATEN CCVSR Video Session Recording Software
DDNS (Dynamic Domain Name System)
Enable / disable browser operation
IPv6 capable
Easy-to-Use Interface
Browser-based and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
Multi-platform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser supports (Chrome, Firefox, Safari, Opera)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Full-screen or sizable and scalable Virtual Remote Desktop
Advanced Security
External authentication supports: RADIUS, LDAP, LDAPS, and MS Active Directory
TLS 1.2 encryption to protect password when users log in
Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or systemgenerated random selection for independent keyboard / mouse, video, and virtual media data encryption
Supports for IP / MAC Filter
Supports password protection
Private CA
Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
Convenient to use without virtual media cable
Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multi-language support
Mouse Dynasync
Exit Macros support
BIOS-level access
Optional Accessories :
