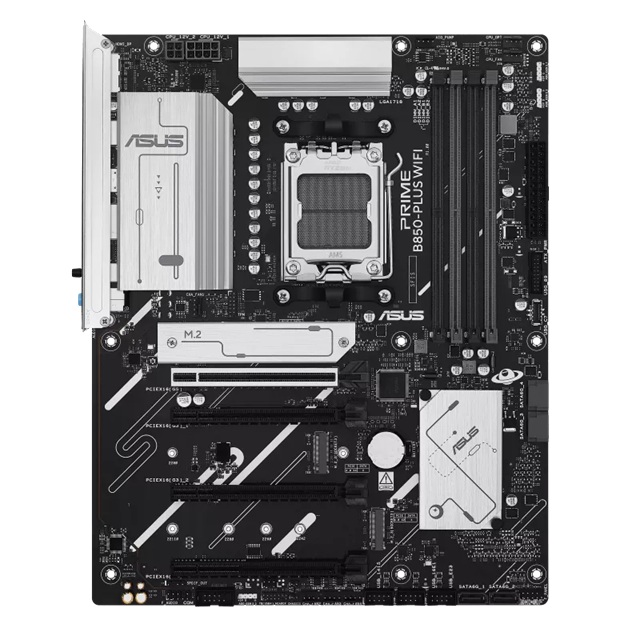

ASUS AMD PRIME B850-PLUS WIFI-CSM (AM5) ATX Motherboard
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
SPECIFICATIONS
Model
PRIME B850-PLUS WIFI-CSM
News & Updates
Socket AM5
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Supports up to AMD 170W CPU
Chipset
AMD B850 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Graphics
1 x DisplayPort**
1 x HDMI™ port***
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
2 x PCIe 3.0 x16 slots (support x1 mode)***
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
‘Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
USB
Rear USB (Total 8 ports)
4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Remote Management Features
IT Management software supported
– ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
