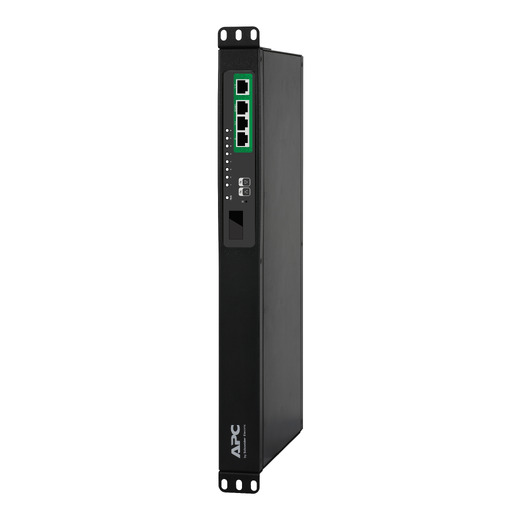

APC Easy Rack PDU, Switched, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

APC Easy Switched Rack PDU EPDU1016S is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip.
This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment. Eliminates the need to replace products already installed in the field when new features are released. Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU Quickly and easily upgrade firmware via network download for future product enhancements. Allows users to configure the sequence in which power is turned on or off for each outlet. The packaging includes cable, installation guide and horizontal mounting brackets for quick and easy mounting in the enclosure.
Colour Black
PDU type Switched
Cable length 2.50 m
Provided equipment Horizontal mounting brackets Installation guide Cable
Input Voltage 200 V 208 V 230 V
Output Voltage 208 V 230 V
Mounting location Front Rear
Mounting preference No preference
Input Connection Type IEC 60320 C20
Number of rack unit 1U
Mounting position Horizontal
Input current limits 16 A
Load capacity 3680 VA
Network frequency 50/60 Hz
Number of power socket outlets 8 IEC 60320 C13
Ambient air temperature for operation -5…45 °C
Relative humidity 5…95 %
Operating altitude 0…10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0.00…15240.00 m

Compatible Racks- AR3100, AR3100W, AR3003, AR3006, AR3104, AR3103
