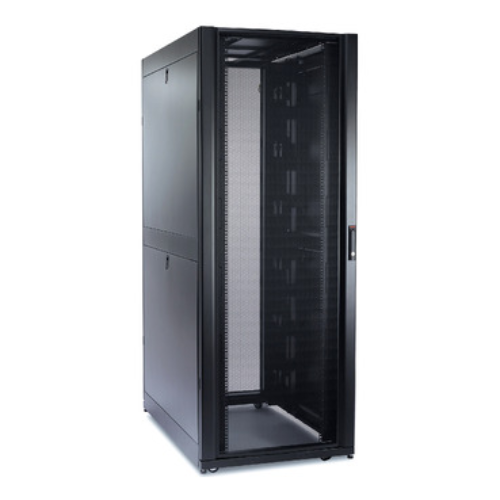

APC (AR3357) NETSHELTER SX 48U 750MM WIDE X 1200MM DEEP ENCLOSURE
Designed for high density environments with standard features for speed of deployment and installation. Wide rack design provides space for passing cabling from front-to-back and ensures plenty of clearance at the back for rack accessories and limits interference with IT device hot swap components. Very ideal for blade, converged, and hyperconverged devices. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting accessories. 48U height allows for an additional 6U of rack mounting space maximizing u-space per rack footprint.
Main
Product or component type: Rack enclosure
Number of rack unit: 48U
Provided equipment:
Baying hardware
Key(s)
Leveling feet
Mounting hardware
Pre-installed casters
Side panels
Physical
Height225.8 cm
Width75 cm
Depth120 cm
Net weight185.45 kg
Colour Black
Mounting preference No preference
Mounting mode Not rack-mountable
Maximum mounting depth 104.8 cm
minimum mounting depth 26.19 cm
Rack width 19′
Marking
14 gauge EIA mounting rail
16 gauge front door
16 gauge post
16 gauge rear door
18 gauge roof
18 gauge side panels
Permanent permissible load
1020.6 kg dynamic
1701.0 kg static
Conformance
Standards
UL 2416
UL 60950-1
EIA-310E
Warranty
5 year repair or replace
