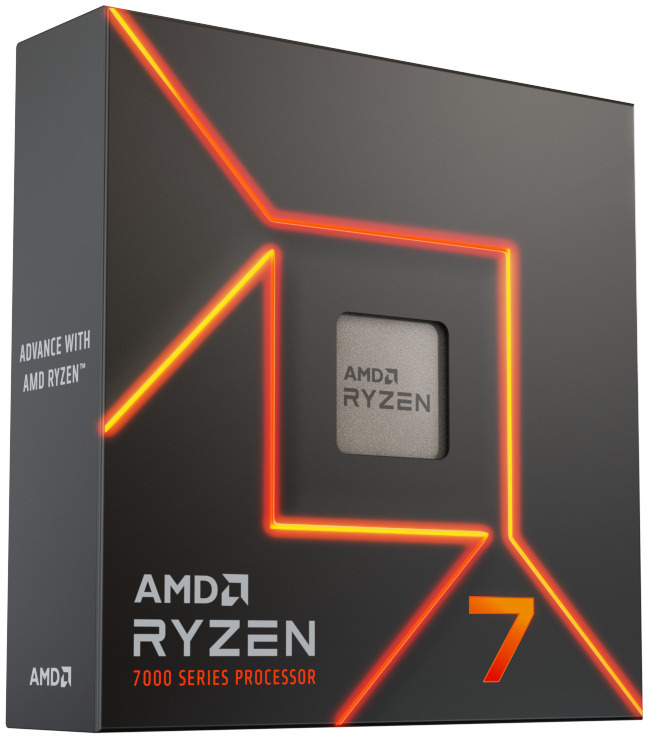

AMD Ryzen 7 7700 8 Cores / 16 Threads, 65 watts, Max Freq 5.3Ghz, 40MB Cache, Wraith Prism Cooler & Radeon Graphics
General Specifications
Platform Desktop
Market Segment Enthusiast Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 7 Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global,
Former Codename ‘Raphael AM5’
Architecture ‘Zen 4’
# of CPU Cores 8
Multithreading (SMT) Yes
# of Threads 16
Max. Boost Clock Up to 5.3GHz
Base Clock 3.8GHz
L1 Cache 512KB
L2 Cache 8MB
L3 Cache 32MB
Default TDP 65W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 1
Unlocked for Overclocking Yes
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket AM5
Supporting Chipsets
X670E
X670
B650E
B650
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) AMD Wraith Prism
Max. Operating Temperature (Tjmax) 95°C
Optional Accessories :
