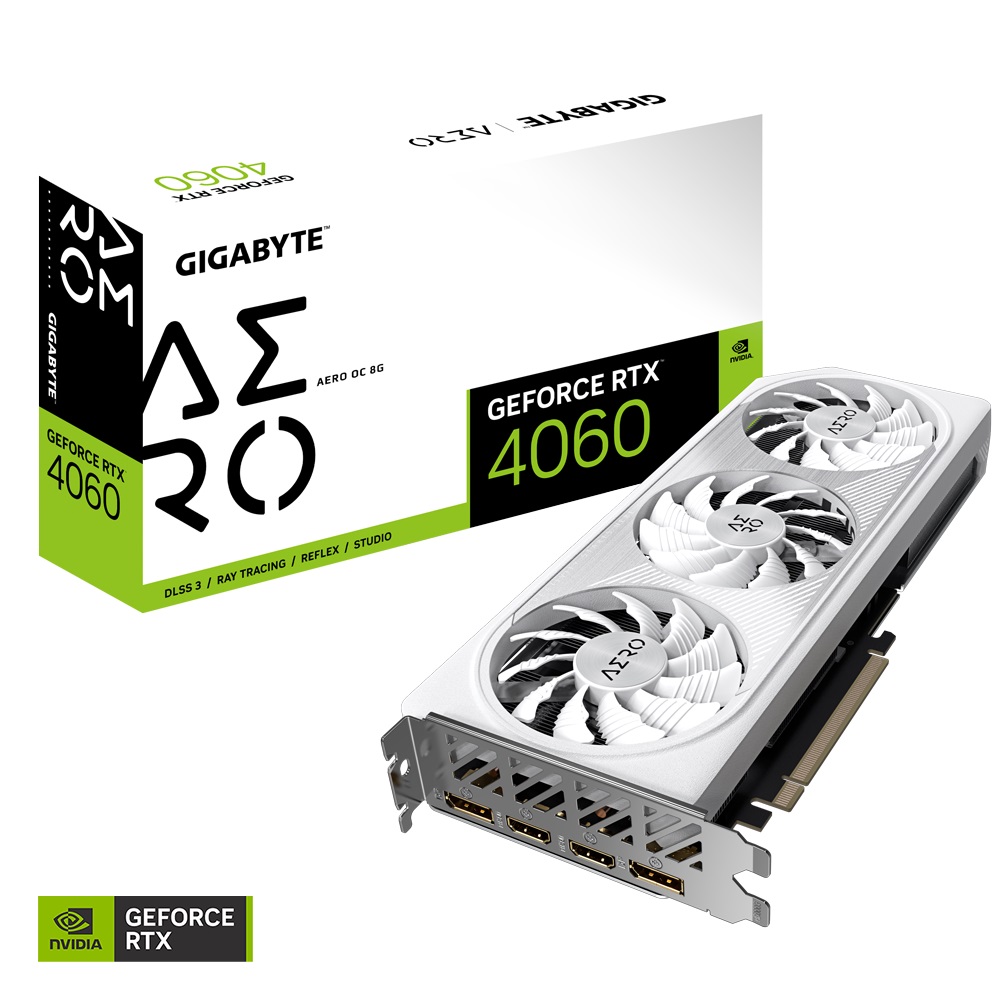

Gigabyte nVidiaGeForce RTX™ 4060 AERO OC 8G, 2550 MHz, CUDA 3072, 17 Gbps, GDDR6, 128 bit, PCI-E 4.0, PSU 450W, DisplayPort 1.4a*2 HDMI 2.1a*2

SPECIFICATION

Graphics Processing
GeForce RTX™ 4060

Core Clock
2550 MHz (Reference card: 2460 MHz)

CUDA® Cores
3072

Memory Clock
17 Gbps

Memory Size
8 GB

Memory Type
GDDR6

Memory Bus
128 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=281 W=114 H=38 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 pin*1

Output
DisplayPort 1.4a*2
HDMI 2.1a*2

Accessories
Quick guide

KEY FEATURE

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate

Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors
Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering

Third-Gen RT Cores
Up to 2x ray tracing performance

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

OPTIMIZED THERMAL MODULE
The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

EXCELLENT IN ESSENTIAL

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

Optional Accessories :

Weight	1.04 kg
Dimensions	366 × 188 × 82 cm
